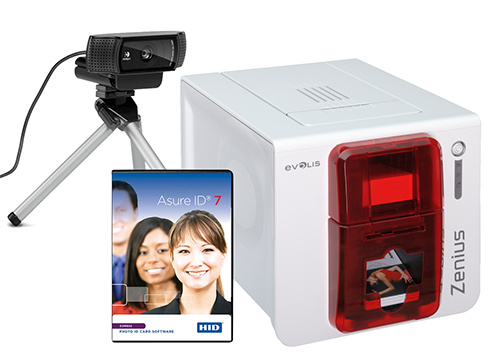

Compact, easy to use and professional

Professional printing

Zenius printers produce professional results thanks to the 300 dpi resolution and edge to edge printing. Your logos, photos, barcodes and text are rendered perfectly on your cards, conveying a positive image of your organization.

Space saving

Zenius packs all its advanced features into a very small footprint. Hardly larger than a standard sheet of paper, Zenius is also very quiet - 46 decibels in operation - and fits perfectly into any environment, be it the office or a customer service counter.

Ease of use

Zenius was designed to be intuitive and easy to use.

• You insert your cards individually or use the automatic feeder, and the final product is delivered on the front of the printer.
• With the Evolis Premium Suite® software you can receive notifications and easily control the printer from your computer.
• Evolis High Trust® ribbons are easy to install and automatically recognized by the printer.

On demand printing

Zenius was developed specifi cally for printing cards individually or in small runs. You can print as needed, when needed, in quantities that are right for you. Zenius can print a color card in 30 seconds and up to 150 color cards per hour, so you and your customers don’t have to wait.

Lasting investment

Zenius printers undergo quality and compliance testing to guarantee their robustness and performance, so you can be sure that your investment will last. What’s more, Evolis offers an extended warranty option for extra peace of mind.

General features

• Single-sided printing module
• Edge-to-edge printing
• Color dye sublimation, monochrome thermal transfer
• 300 dpi print head (11.8 dots/mm)
• 16MB memory (RAM)

Printing performances

• Color (YMCKO): 120 - 150 cards/hour
• Monochrome: 400 - 500 cards/hour

Interfaces

• USB 1.1 (compatible 3.0)

Safety

• Support for Kensington® security lock
• Data encryption for magnetic encoding

Display

• Printer LEDs
• Graphical notifications from the printer2: cleaning alerts, empty/low level ribbon alert, etc.

Card management and specifications

• Choice of automated or manual feeding
• Feeder capacity: 50 cards (0.76 mm - 30 mil)
• Output hopper capacity: 20 cards (0.76 mm - 30 mil)
• Card thickness: 0.25 to 0.76 mm (10 to 30 mil), gauge adjustment

Card types:

• PVC cards
• Composite PVC cards
• PET cards
• ABS cards1
• Special varnished cards1

• Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)

Software

• Delivered with Evolis Premium Suite® for Windows™:

• Printer driver
• Evolis Print Center for printer administration and settings
• Evolis Printer Manager for graphical notification3
• 24/7 online support
• Compatible with Windows™: XP SP3 32/64, Vista 32/64, W7 32/64, W8 32/64

Packaging content

• Printer
• CD-ROM with printer drivers, user manuals
• Cleaning kit
• USB cable
• Power supply and cord

Size and weight

• Size (H x W x D): 195 x 205 x 315 mm (7.68’’ x 8.07’’ x 12.4’’)
• Weight: 3.3kg (7.3lbs)

Warranty

• 2-year warranty (printer and printhead)4
• Warranty extension available as an option
• 2-Year Loaner Printer Program when purchased from CiDS
